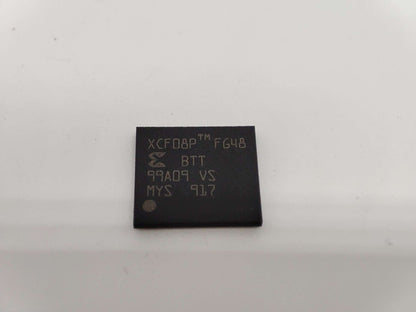

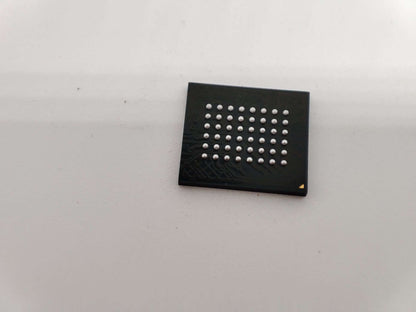

XCF08PFSG48C (AMD) is an in-system programmable 8 Mb Platform Flash configuration PROM (XCF08P) for AMD (Xilinx) FPGAs, 1.8 V core supply, in a 48-ball Pb-free TFBGA package (FSG48).
In-system programmable PROM for FPGA configuration · low-power advanced CMOS NOR Flash process · endurance of 20,000 program/erase cycles
1.8 V supply voltage · I/O pins compatible with voltage levels from 1.8 V to 3.3 V · dedicated boundary-scan (JTAG) I/O power supply (VCCJ)
Serial or parallel FPGA configuration (Master/Slave Serial and Master/Slave SelectMAP) · data output at rates up to 33 MHz from a stable external clock
Built-in data decompressor compatible with Xilinx advanced compression technology · cascadable · IEEE 1149.1/1532 boundary scan · industrial range (-40°C to +85°C)
