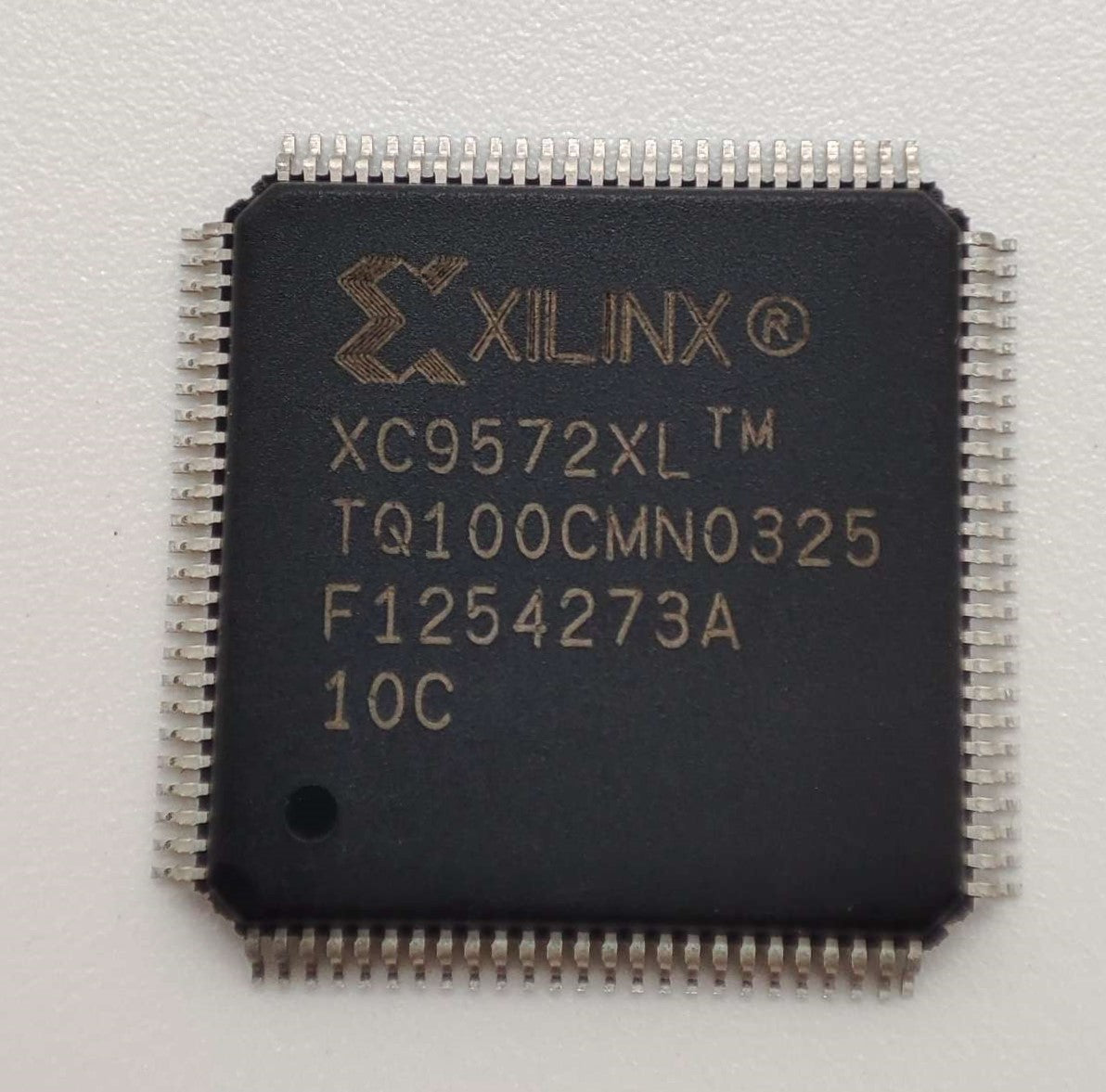

XC9572XL-10TQ100C (AMD) is an XC9500XL high-performance CPLD with 72 macrocells and 1,600 usable gates, 3.3 V supply, in a 100-pin TQFP (TQ100) package.
72 macrocells with 1,600 usable gates · 5 ns pin-to-pin logic delays in the family · 10 ns speed grade
System frequency up to 178 MHz · advanced 0.35 micron Fast FLASH CMOS technology · in-system programmable
72 user I/O pins · 5 V tolerant I/O pins accept 5 V, 3.3 V and 2.5 V signals · 3.3 V or 2.5 V output capability
commercial (TA = 0°C to +70°C) temperature range · endurance exceeding 10,000 program/erase cycles
