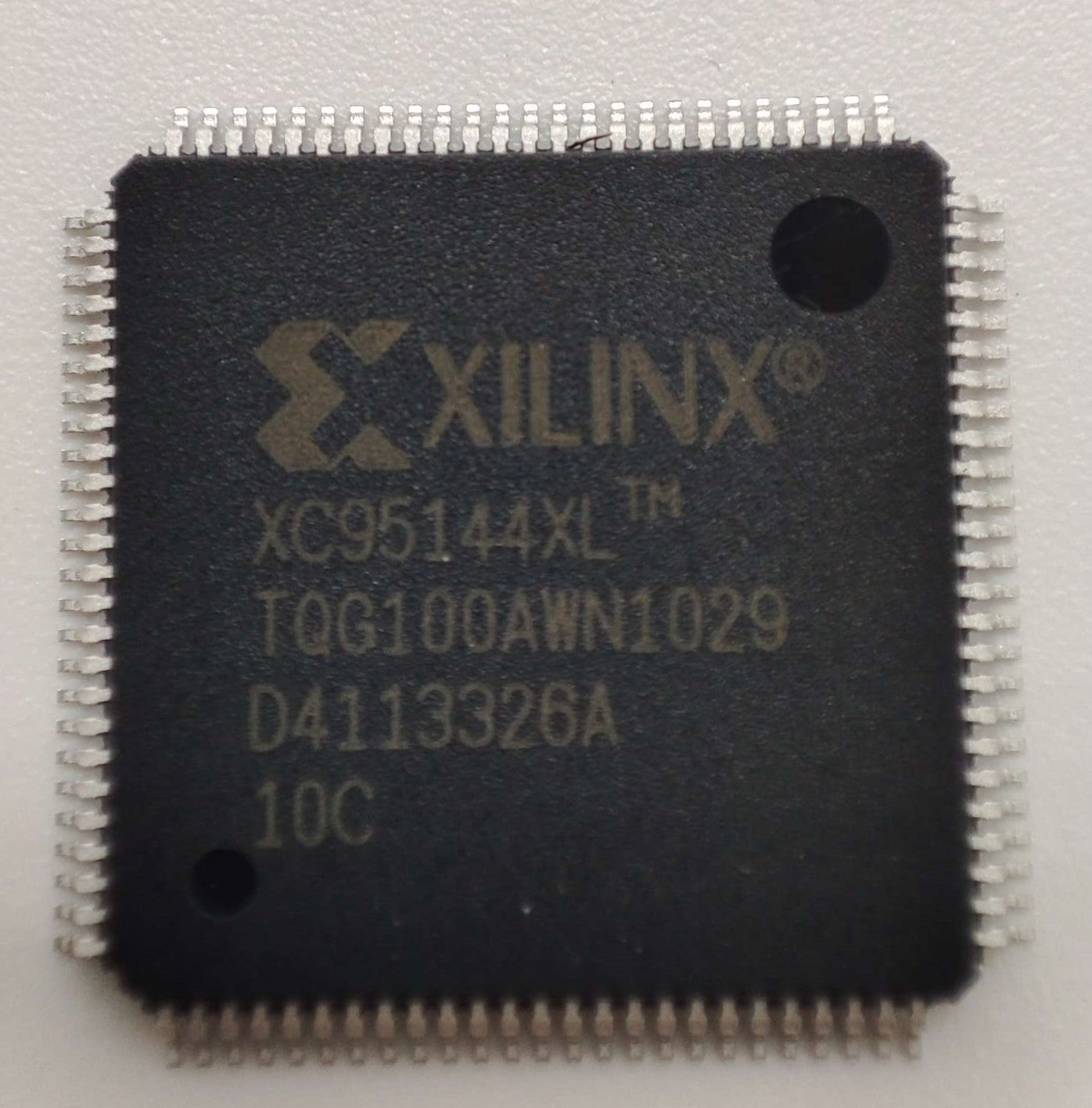

XC95144XL-10TQG100C (AMD) is an XC9500XL high-performance CPLD with 144 macrocells and 3,200 usable gates, 3.3 V supply, in a 100-pin TQFP (TQG100, Pb-free) package.

• 144 macrocells with 3,200 usable gates · 5 ns pin-to-pin logic delays in the family · 10 ns speed grade
• System frequency up to 178 MHz · advanced 0.35 micron Fast FLASH CMOS technology · in-system programmable
• 81 user I/O pins · 5 V tolerant I/O pins accept 5 V, 3.3 V and 2.5 V signals · 3.3 V or 2.5 V output capability
• commercial (TA = 0°C to +70°C) temperature range · endurance exceeding 10,000 program/erase cycles

Data per AMD XC95144XL datasheet.
