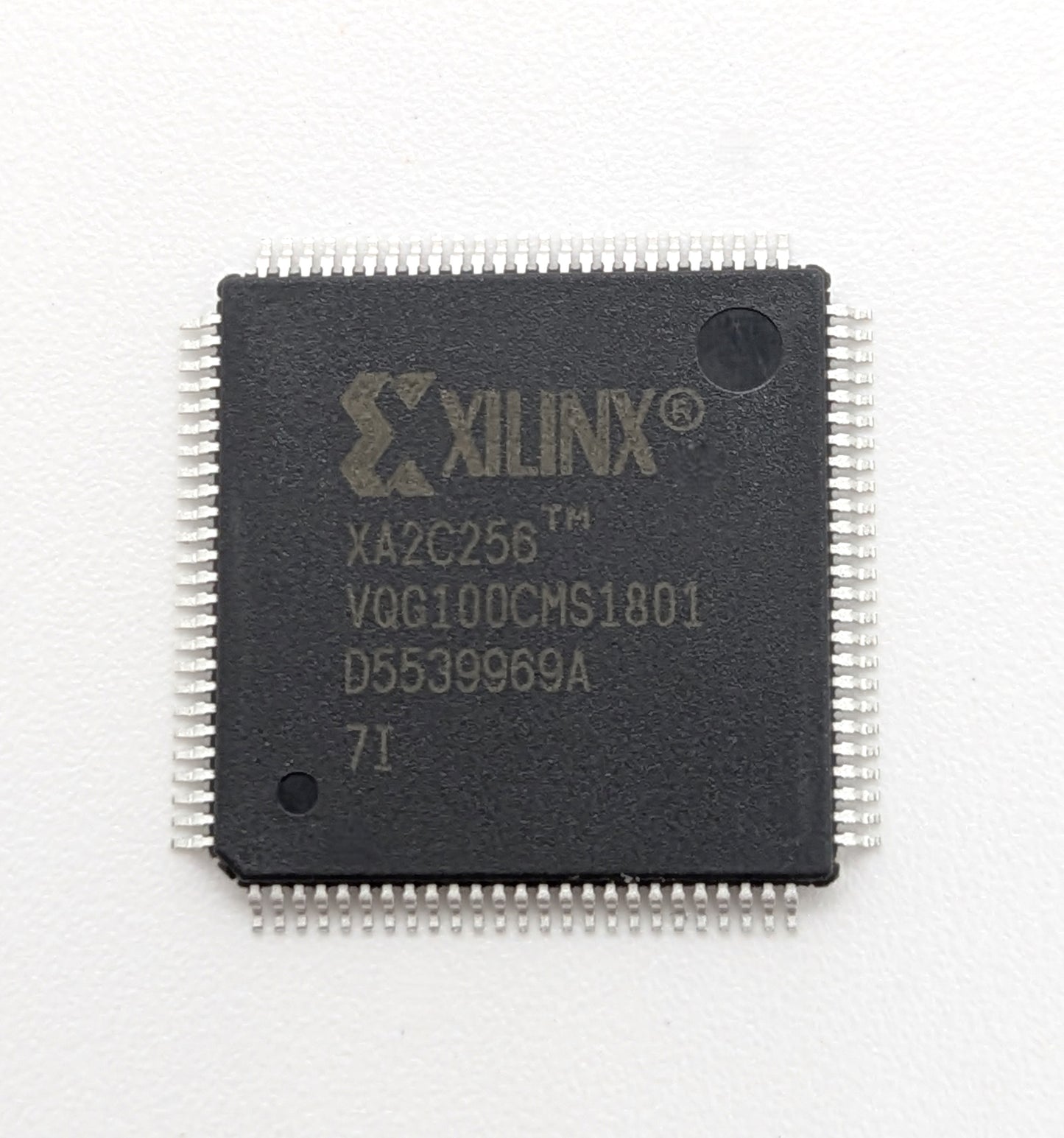

XA2C256-7VQG100I (AMD) is an automotive-qualified CoolRunner-II CPLD (XA2C256) with 256 macrocells, optimized for 1.8 V systems, in a 100-pin Pb-free VQFP package (VQG100), industrial grade (I).
256 macrocells in sixteen function blocks · 0.18 micron CMOS technology · multi-voltage I/O operation from 1.5 V to 3.3 V
AEC-Q100 device qualification with full PPAP support · specifications guaranteed over TA = -40°C to +105°C in Q-grade (industrial I-grade for this part number)
100-pin VQFP (14 mm x 14 mm, 0.5 mm pin spacing) with 80 user I/O · speed grade -7 (TPD2 of 7.5 ns max.; FSYSTEM1 of 152 MHz)
1.8 V in-system programming using the IEEE 1532 (JTAG) interface · IEEE 1149.1 boundary scan · optional Schmitt-trigger input per pin · DataGATE
