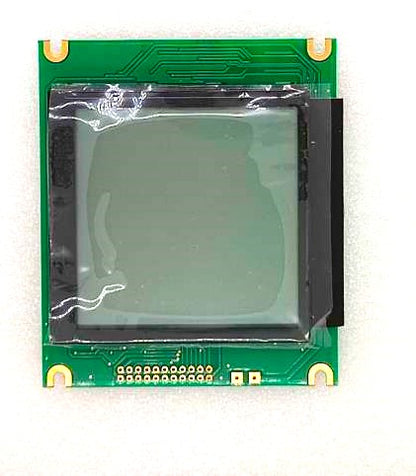

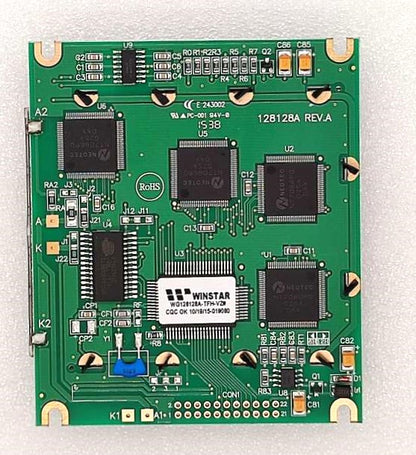

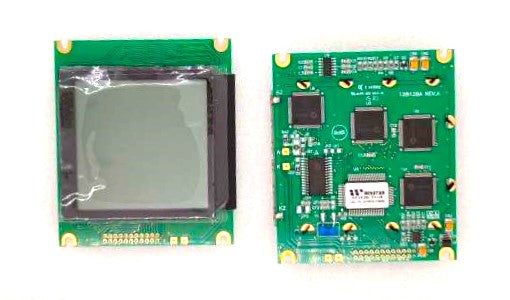

WG128128A-TFH-VZ# (Winstar) is a 128 x 128 dot graphic LCD module, FSTN positive transflective with white LED backlight and an RA6963 controller.

• 128 x 128 dots · 0.40 x 0.40 mm dot size and 0.43 mm dot pitch · 62.0 x 62.0 mm view area
• FSTN positive transflective · 1/128 duty · 6 o'clock view direction · white LED backlight
• RA6963 controller · 3.0 to 5.5 V logic supply · 85.0 x 100.0 x 14.5 mm (max) module dimensions
• −20 °C to +70 °C operating temperature (storage −30 to +80 °C)

Data per Winstar WG128128A-TFH-VZ# datasheet.
