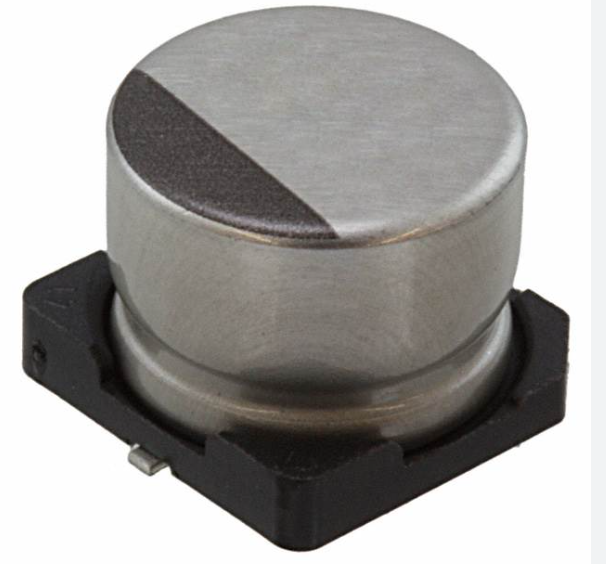

UCD1V330MCL1GS (Nichicon) is a surface-mount aluminum electrolytic capacitor from the UCD series, rated 33 µF, 35 V and ±20%, with a −55 °C to +105 °C category temperature range.
33 µF capacitance (±20% at 120 Hz) · 35 V rated voltage
6.3 x 5.8 mm size · 0.12 max. tan δ · 11.55 µA max. leakage current
0.36 Ω max. impedance · 240 mArms rated ripple current
−55 °C to +105 °C temperature range · 2000 hours endurance at 105 °C
