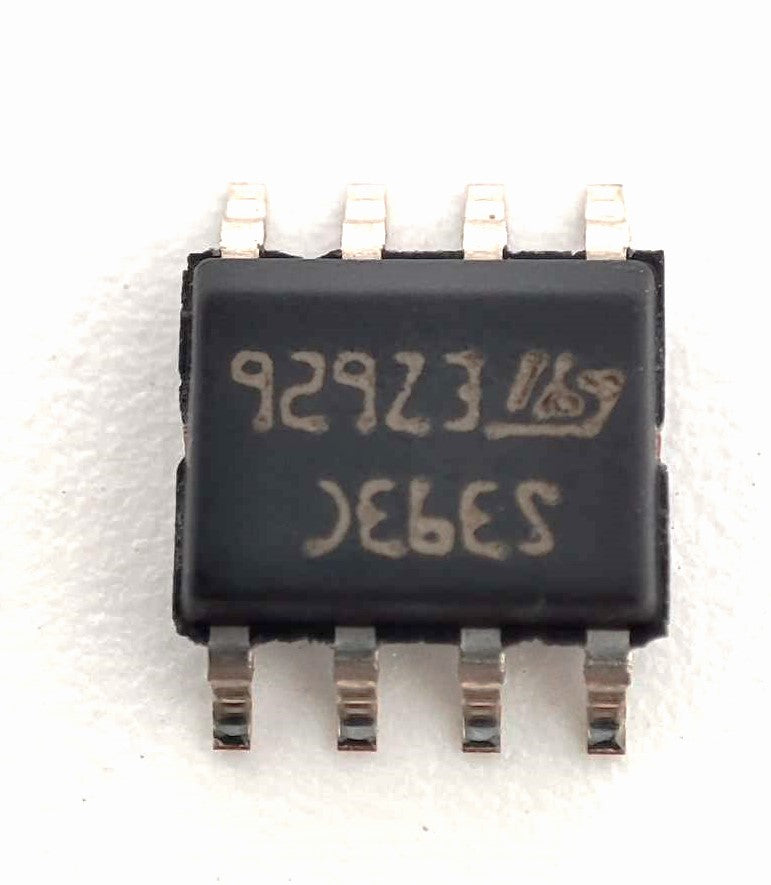

TS393CDT (STMicroelectronics) is a micropower dual CMOS voltage comparator, pin-compatible with the bipolar LM393, in an SO-8 package on tape and reel.
Extremely low supply current: 9 µA typical per comparator · single supply of 2.7 V to 16 V (or dual ±1.35 V to ±8 V)
1 pA typical input bias current · 1 pA typical input offset current · 10¹² Ω typical input impedance
2.5 µs typical response time for 5 mV overdrive · input common-mode range includes ground
Pin-to-pin and functionally compatible with the dual bipolar LM393 · open-drain output
