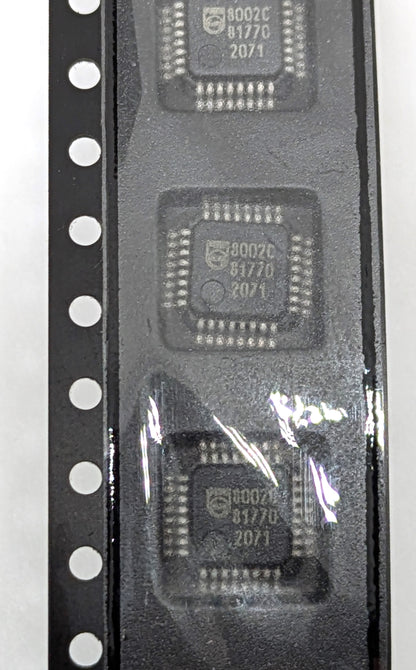

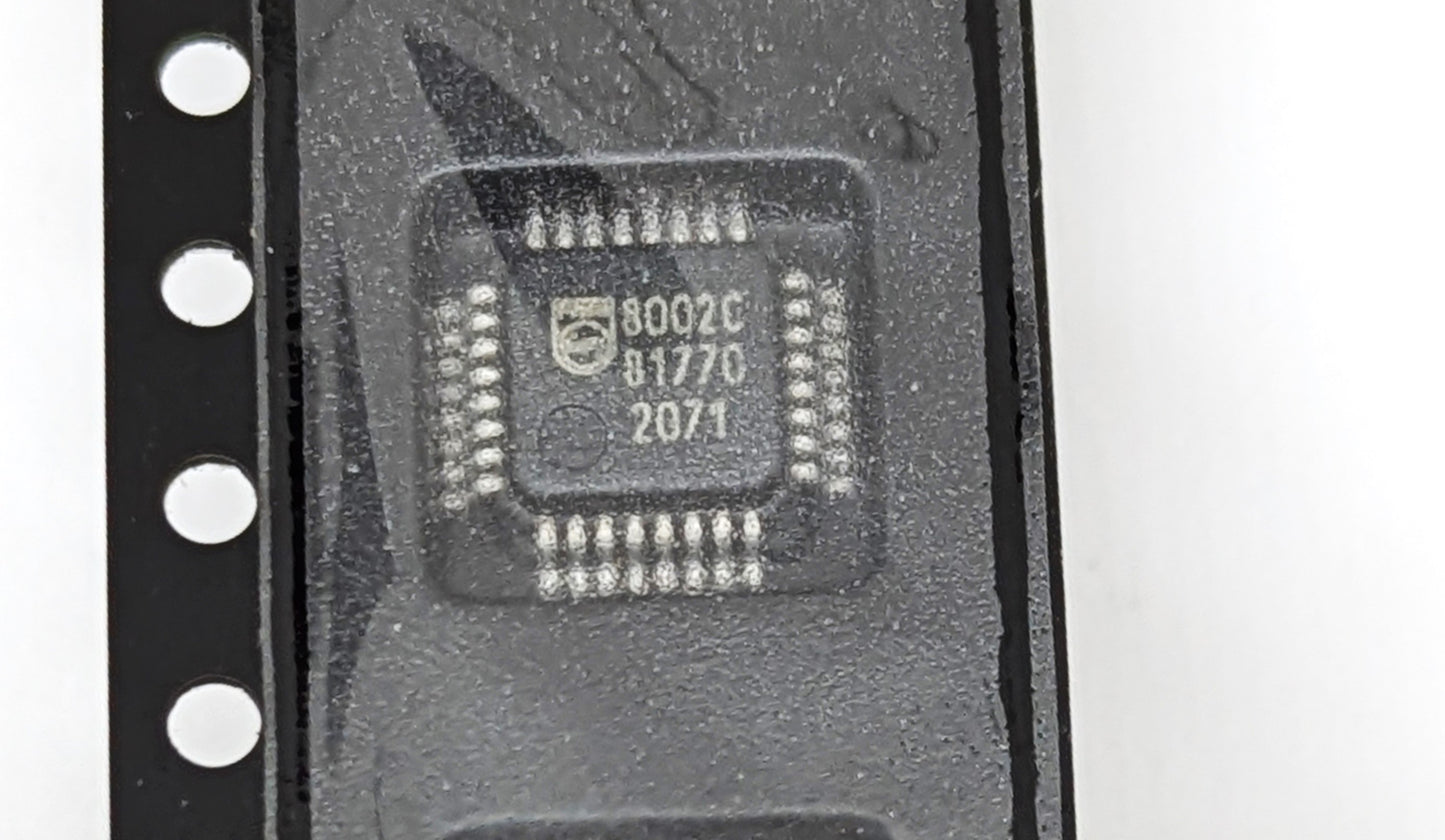

TDA8002CG/C1 (NXP) is a complete low-power analog interface for asynchronous and synchronous IC cards (TDA8002C), compatible with ISO 7816, GSM11.11 and EMV, in a 32-pin LQFP package.
Single supply voltage of 3.0 V to 6.5 V · VCC regulation of 5 V ±5% or 3 V ±5% with ICC < 55 mA
Three protected half-duplex bidirectional buffered I/O lines · step-up converter for VCC generation
Clock generation for the card up to 12 MHz · external clock up to 20 MHz · low-power sleep mode
Thermal and short-circuit protections · enhanced ESD protection on card side (>6 kV) · automatic ISO 7816 activation and deactivation sequences
Data per Philips Semiconductors TDA8002C datasheet.
