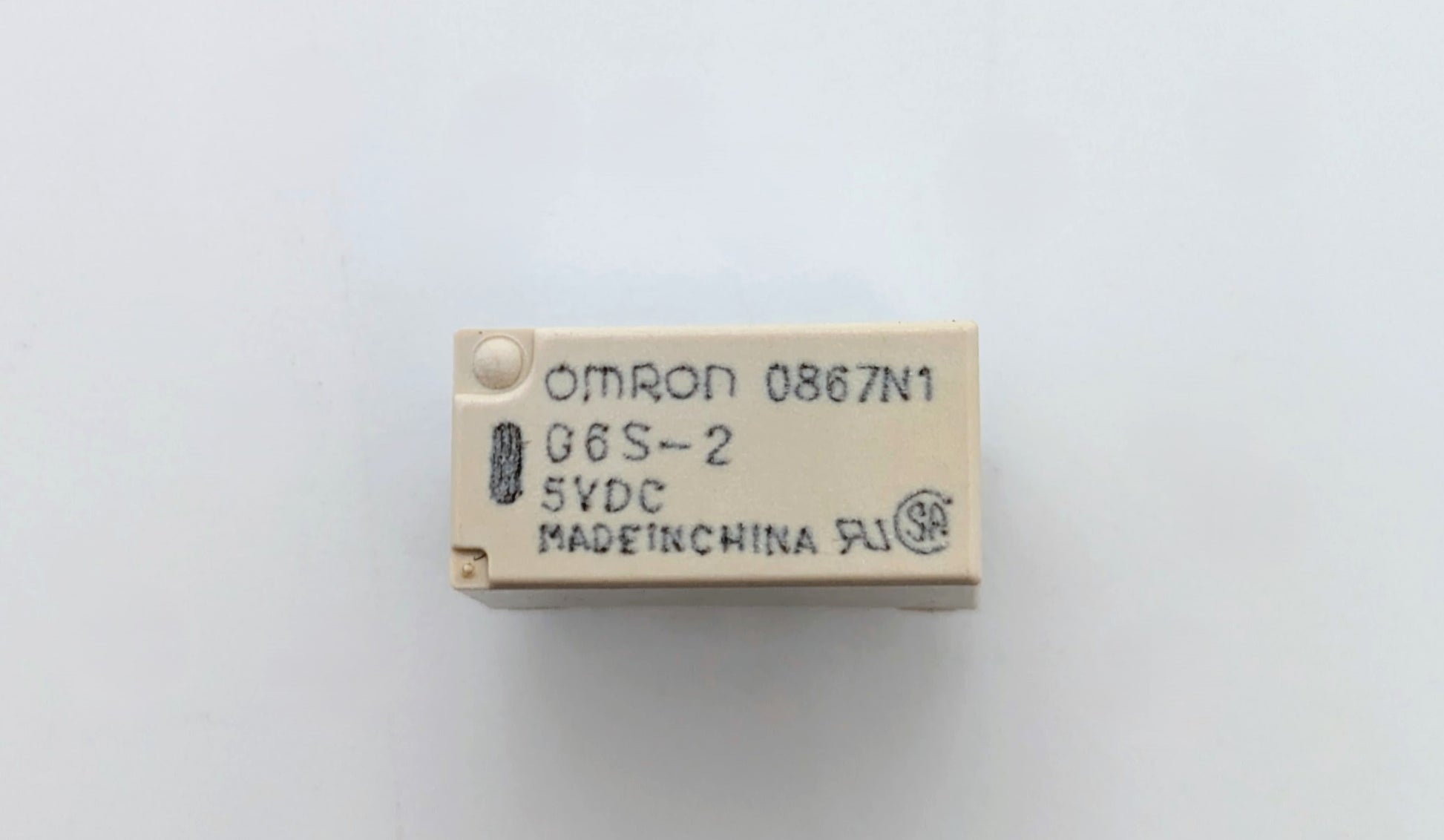

G6S-2-5DC (Omron) is a compact 2-pole (DPDT, 2c) signal relay with PCB terminals and a 5 VDC coil, from the G6S series (model G6S-2 DC5).

• Compact at 9.4 mm (H) × 7.5 mm (W) × 15 mm (L) · fully sealed construction · bifurcated crossbar contacts of Ag (Au-alloy)
• 5 VDC coil: 28.1 mA rated current, 178 Ω coil resistance and approx. 140 mW power consumption
• Rated load of 0.5 A at 125 VAC and 2 A at 30 VDC · rated carry current of 2 A · maximum switching voltage of 250 VAC and 220 VDC
• High dielectric strength of 2,000 VAC and impulse withstand voltage of 2,500 V between coil and contacts

Sold in packs of 5 units.

Data per Omron G6S datasheet.
