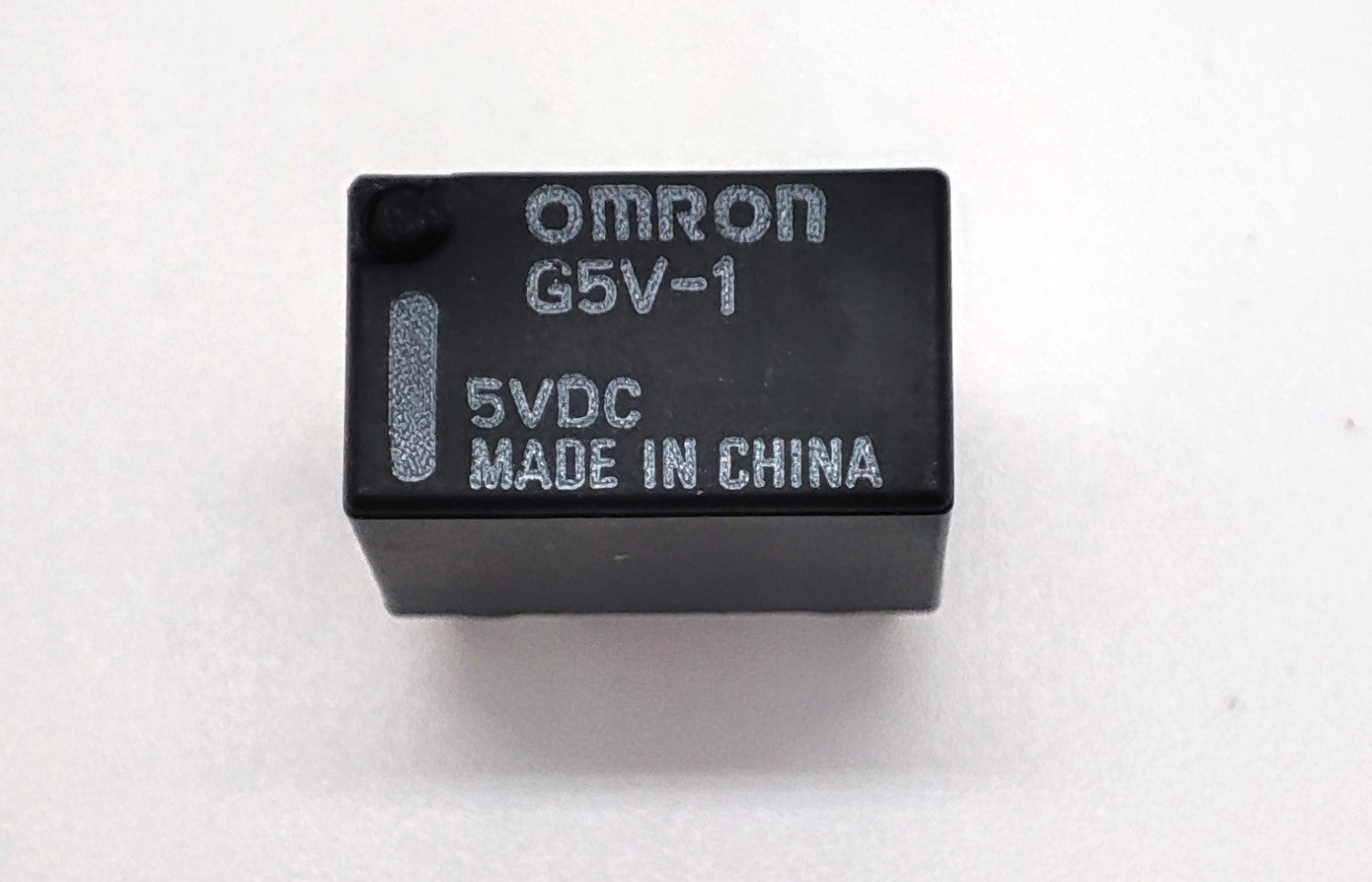

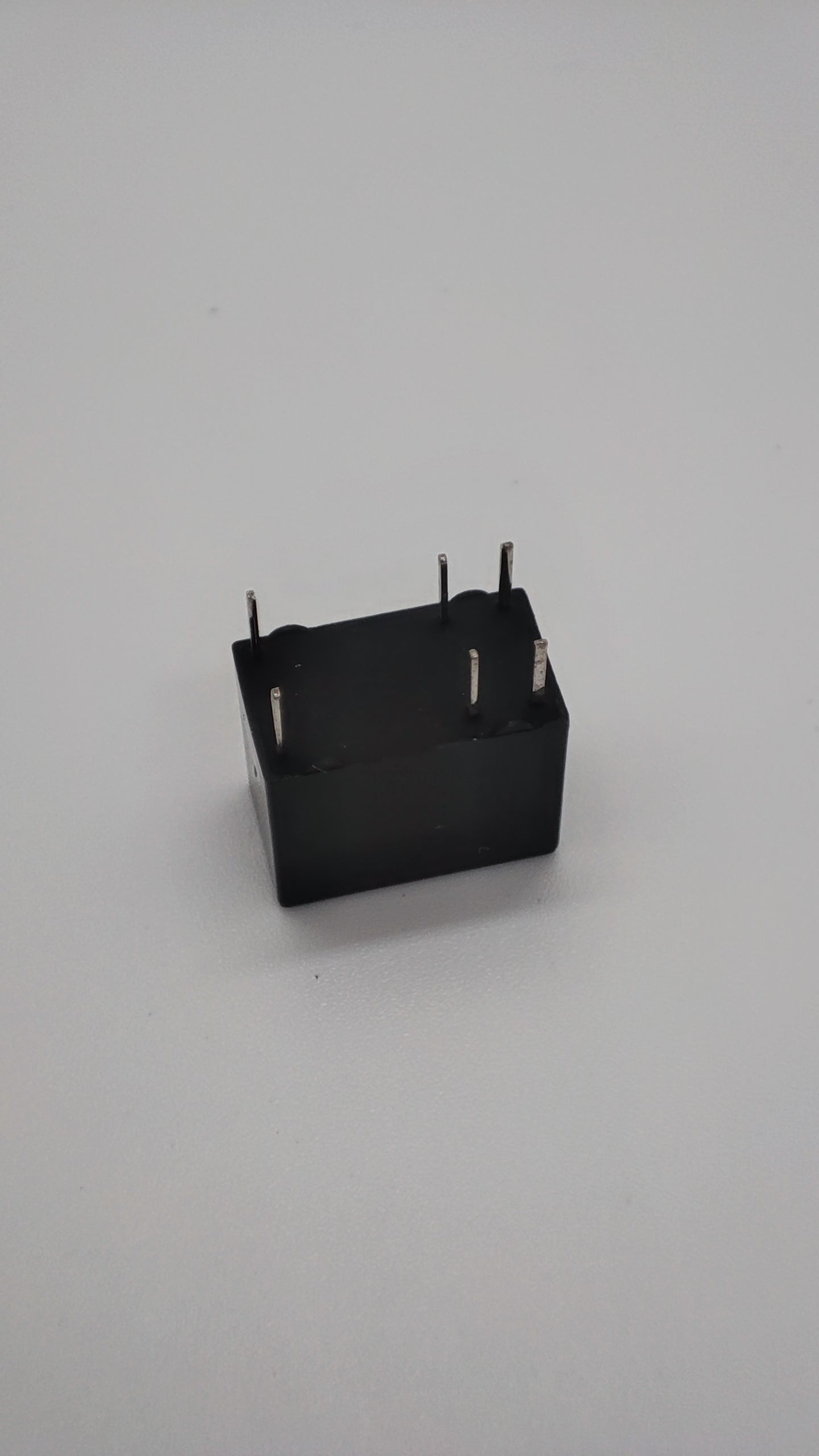

G5V-1-5DC (Omron) is an ultra-miniature, highly sensitive SPDT (1c) signal relay with PCB terminals and a 5 VDC coil, from the G5V-1 series (model G5V-1 DC5).
Ultra-miniature at 12.5 × 7.5 × 10 mm · fully-sealed construction
5 VDC coil: 30 mA rated current, 167 Ω coil resistance and approx. 150 mW power consumption
Rated load of 0.5 A at 125 VAC and 1 A at 24 VDC · switching power of 1 mA to 1 A · maximum switching voltage of 125 VAC and 60 VDC
100 mΩ max. contact resistance · 5,000,000 operations min. mechanical life · conforms to FCC Part 68 requirements for coil to contacts
