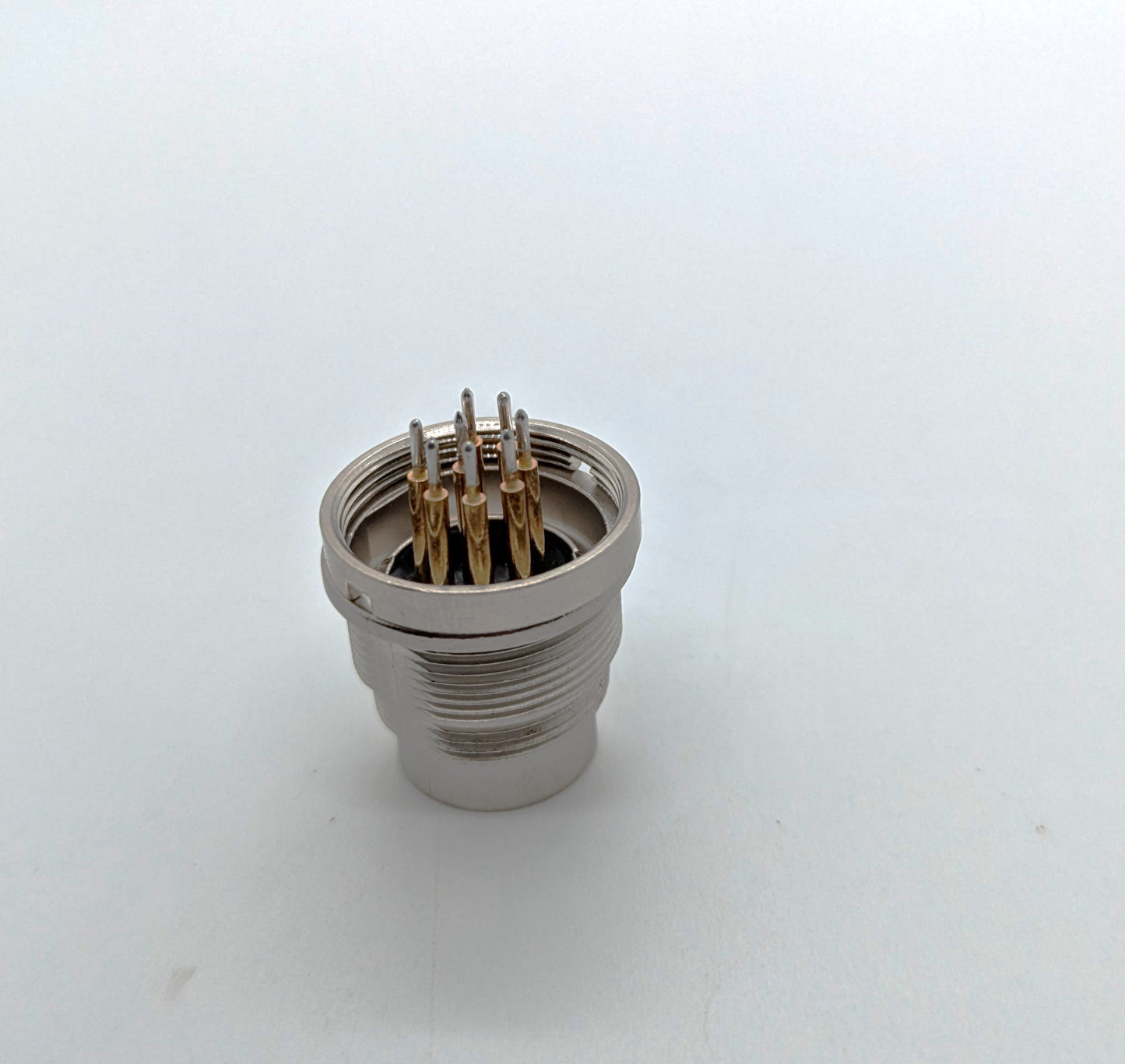

0317-2 08-1 (Lumberg) is a male circular chassis plug (SWUM, per IEC 61076-2-106 and AISG) with 8 positions, an M16 threaded joint, and manual soldering for printed circuit boards.

• 8 positions · M16 thread per IEC 61076-2-106 · IP68/IP67 protection
• 5 A rated current · 100 V rated voltage (pollution degree 1) · insulation resistance above 100 MΩ
• Zn die-cast nickel-plated housing · nickel- and silver-plated CuZn contact pins · PA insulating body (UL94 V-2) · NBR seal
• −40 °C to +85 °C temperature range · for rear mounting and manual PCB soldering

Data per Lumberg 0317-2 datasheet.
